제품 상세 정보:
결제 및 배송 조건:
|
| 상태:: | 새로운 | 용법:: | 굽힘 파이프 |
|---|---|---|---|
| 굴곡 반경 :: | 2.5d ≤ r ≤ 7d | 이름:: | 관 만곡기 |
| 벽 두께 :: | 10-50mm | 무게:: | 82 톤 |
| 애프터 판매 서비스: | 해외 서비스 기계에 이용할 수있는 엔지니어 | 재료:: | 탄소강, 합금강, 직선 솔기 용접 |
| 색상: | 녹색 | 제품 이름: | 유압 중고 파이프 굽힘 기계 |
| 강조하다: | Hydraulic pipe bender for large-diameter elbows,Used hydraulic pipe bending machine,Pipe bending machine with hydraulic system |
||

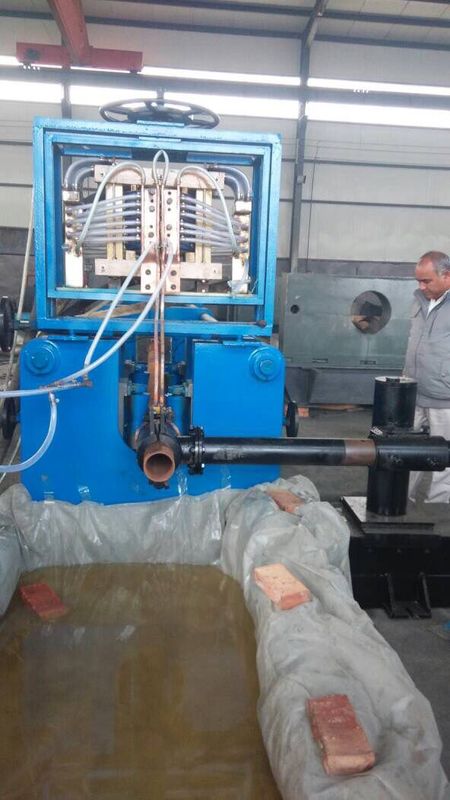

The Hydraulic Used Pipe Bending Machine is a specialized heavy-duty equipment engineered to produce large-diameter pipe elbows, catering to pipe fitting manufacturing in industries like oil & gas, petrochemicals, power engineering, and municipal infrastructure. It leverages hydraulic drive technology for stable, high-torque bending, enabling it to handle thick-walled, large-diameter pipes that standard pipe benders cannot process.
This machine offers an optimal balance of processing capacity and bending precision, covering pipe diameters from 325mm to 1066mm and wall thicknesses of 10-50mm. It maintains strict quality control with pipe wall thinning rate (<10%) and elbow ellipticity (<10%), ensuring bent elbows meet industry standards for structural strength and pressure resistance.
| Parameter Category | Specification Details |
|---|---|
| Elbow Diameter Range | Minimum: 325mm; Maximum: 1066mm |
| Pipe Wall Thickness | 10-50mm |
| Bending Radius Range | 2.5D ≤ R ≤ 7D (D = pipe diameter) |
| Bending Angle Range | 0-90° |
| Pipe Wall Thinning Rate | <10% |
| Elbow Ellipticity | <10% |
| Wave Degree (Heat-Affected Zone) | h/<2% |
| Flatness (for 500mm Pipe Length) | <3mm |
| Bending Radius Tolerance | <20mm |
| Bending Angle Error | ±1° |
| Compatible Pipe Materials |
|
| Fixture Compatibility (Pipe Diameter) | 1066mm, 920mm, 820mm, 720mm, 630mm |
| Machine Weight | 82 tons |
| Main Cylinder Parameter | Specification Details |
|---|---|
| Main Cylinder Thrust | 200 tons (2 cylinders total) |
| Structural Design | Piston structure with front and rear flanges |
| Test Pressure | 31.5Mpa |
| Working Pressure Range | 0-25Mpa |
| Main Cylinder Inner Diameter | 250mm |
| Main Cylinder Outer Diameter | 273mm |
| Piston Rod Diameter | 190mm |
| Material of Cylinder Body | 45# steel |
| Effective Stroke of Main Cylinder | 10m |
We offer a complete pipe fitting machinery portfolio to support end-to-end pipe fitting production:
Our global market presence includes:
