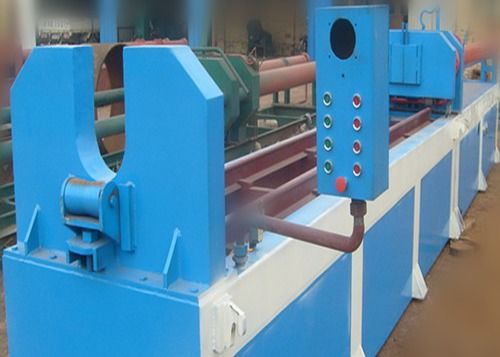

90 급 버트 접합 팔꿈치 제조사 기계

Butt Weld Elbow Maker Machine A234WPB 1/2''~24''INCH Mandrel Pushing For 90 Degree

butt weld elbow making machine is mainly producing the butt welded carbon steel elbow which need to cut the pipe into piece and load on the machine ,then by the hydraulic pushing pressure of the hot forming elbow machine , and the machine go to production and the heating system in the front of the machine will work together then the carbon steel elbow is formed

2grade pumper of integrated connection

1．40SCY—14-1B 1set CB—50 1set

2．Motors:

Y—7.5kw 1set Y—5.5kw 1set

3．Operation Platform 1set

medium-frequency Heating System:Mode No.:KGPS—60KW

Weight of the machine:2.5tons

Dimension: L*W*H: 5800mm*700mm*900mm

2. Packing& Shipping

From the hot forming elbow machine production process , the carbon steel elbow surface is very smooth and no wrinkle the thickness of the carbon steel elbow . According to the heating function, we have high frequency heating system and medium frequency heating system . We also have fire heating function . According to the client requirement ,we can choose the heating function accordingly. For the induction heating of the hot forming elbow machine ,we need the heating coil and the heating coil is made from copper.

Hot forming elbow machine can produce different standard according the orders and different standard need different mandrel for production. And there are some special requirement for the beveling on the finished elbows. Mandrel elbow making machine also belongs to the hydraulic machine which use the hydraulic pushing press to make the the raw material pipe go forwards by the two hydraulic cylinder on the backside and the two cylinder connect with the oil box for the input and output the hydraulic oil.
